The FLS-XS family of universal lighting power controllers includes a highly integrated power switch for medium to high power lumen applications. The FLS-XS family provides everything needed to build a reliable and robust half-bridge resonant converter, simplifying design and increasing production efficiency while improving performance.

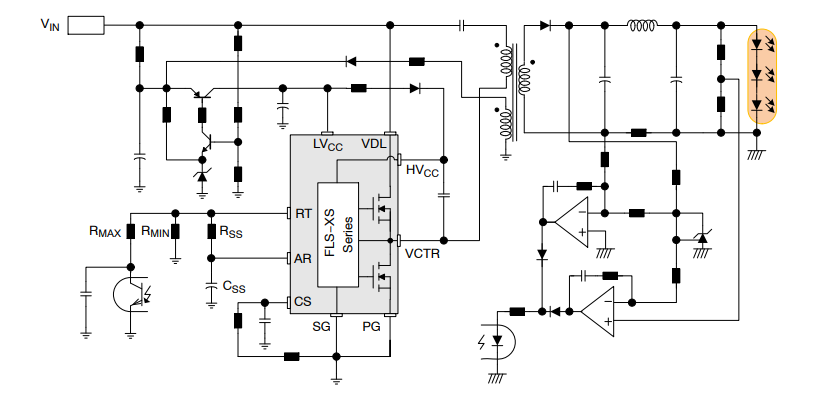

Application Circuit Diagram
The FLS−XS family combines power mosFeTs with quick-recovery body diodes, high-side-door drive circuits, precise current-controlled oscillators, frequency limiting circuits, soft start, and built-in protection. The high side door drive circuit has the ability of common-mode noise elimination to ensure the stable operation and good anti-interference. Mosfets' fast recovery body diodes improve reliability against abnormal operating conditions while minimizing the impact of reverse recovery.
Pin Configuration
The use of zero voltage switching (ZVS) greatly reduces switching losses and significantly improves efficiency. ZVS can also significantly reduce switching noise, which makes a small scale electromagnetic interference (EMI) filter possible. The FLS−XS series can be applied to resonant converter topologies such as series resonant, parallel resonant, and LLC resonant converters.

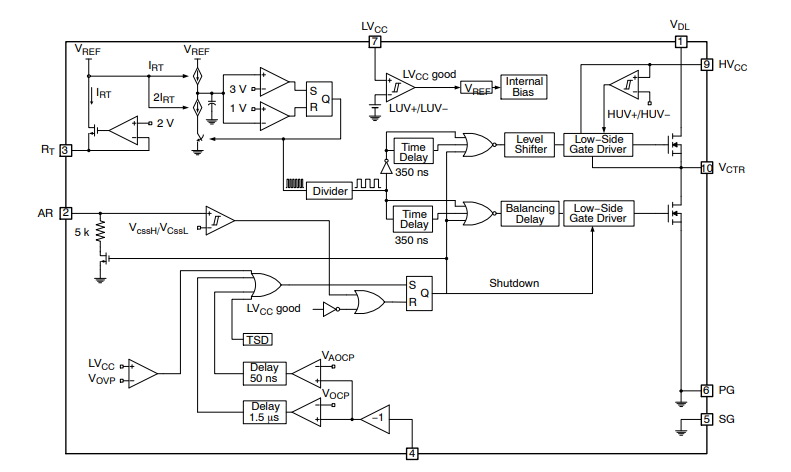

Block Diagram
